Routing Filtering

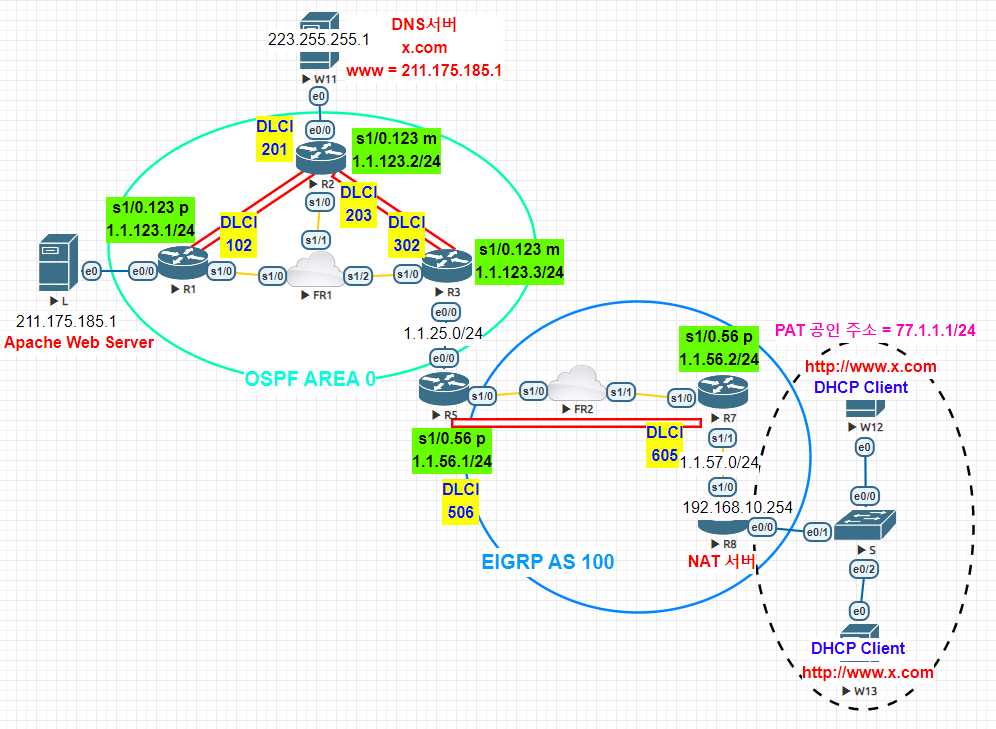

Ex. Build Up (ft.Frame-Relay)

Untitled

방법

ip 주소
DNS 서버, DHCP client, Apache Web Server

Untitled (1)

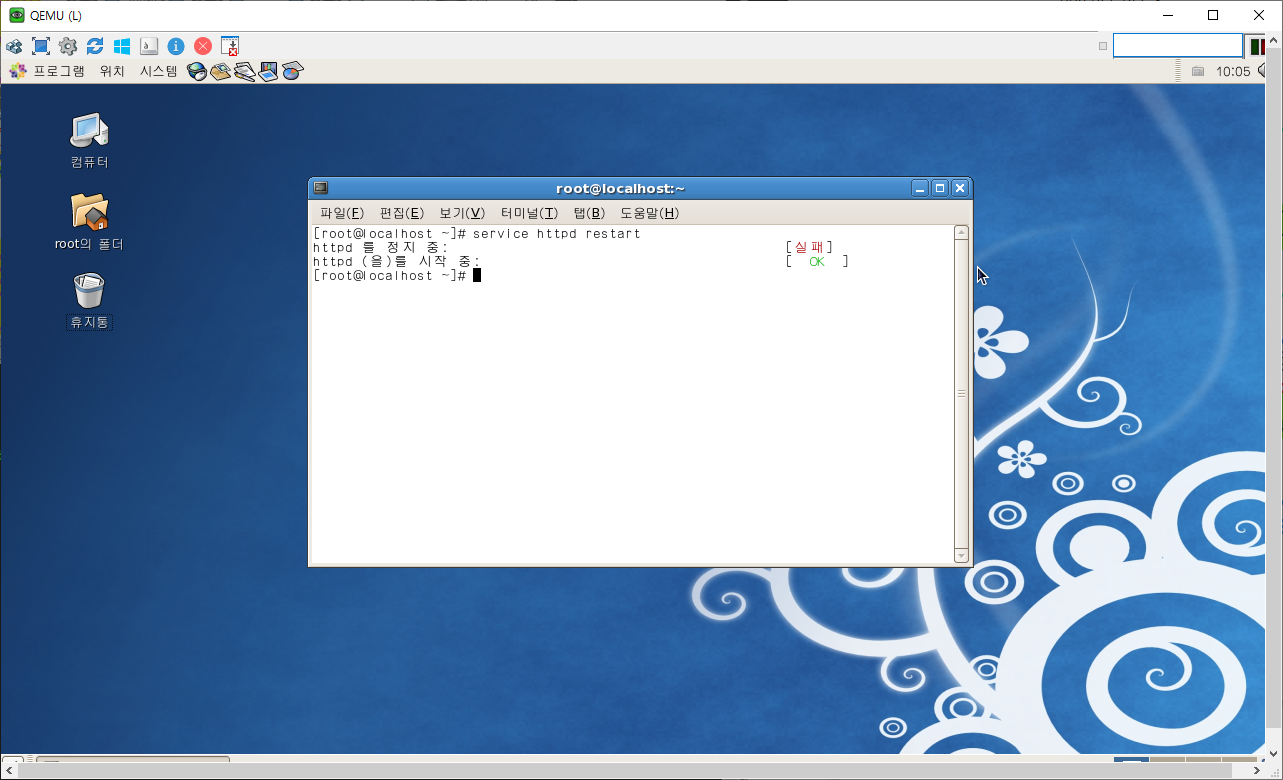

service httpd restart

R8)

ip dhcp pool cisco 1
network 192.168.10.0 255.255.255.0
default-router 192.168.10.254
dns-server 223.255.255.1
ip dhcp excluded-address 192.168.10.254

W12, 13)

ipconfig /release
ipconfig /renew

FR구성

FR1)

frame-relay switching

interface s1/0
encapsulation frame-relay
frame-relay intf-type dce
frame-relay route 102 interface serial 1/1 201
no shutdown

interface s1/1
encapsulation frame-relay
frame-relay intf-type dce
frame-relay route 201 interface serial 1/0 102
frame-relay route 203 interface serial 1/2 302
no shutdown

interface s1/2
encapsulation frame-relay
frame-relay intf-type dce
frame-relay route 302 interface serial 1/1 203
no shutdown

FR2)

frame-relay switching

interface s1/0
encapsulation frame-relay
frame-relay intf-type dce
frame-relay route 506 interface serial 1/1 605
no shutdown

interface s1/1
encapsulation frame-relay
frame-relay intf-type dce
frame-relay route 605 interface serial 1/0 506
no shutdown

라우터 구성 (ft.FR)

R1)

encapsulation frame-relay
no shutdown

interface s1/0.123 point-to-point
ip address 1.1.123.1 255.255.255.0
frame-relay interface-dlci 102

R2)

interface s1/0
encapsulation frame-relay
no shutdown

interface s1/0.123 multipoint
no frame-relay inverse-arp
ip address 1.1.123.2 255.255.255.0
frame-relay map ip 1.1.123.1 201 broadcast
frame-relay map ip 1.1.123.3 203 broadcast

R3)

interface s1/0
encapsulation frame-relay
no shutdown

interface s1/0.123 multipoint
no frame-relay inverse-arp
ip address 1.1.123.3 255.255.255.0
frame-relay map ip 1.1.123.2 302 broadcast

R5)

encapsulation frame-relay
no shutdown

interface s1/0.56 point-to-point
ip address 1.1.56.1 255.255.255.0
frame-relay interface-dlci 506

R7)

interface s1/0
encapsulation frame-relay
no shutdown

interface s1/0.56 point-to-point
ip address 1.1.56.2 255.255.255.0
frame-relay interface-dlci 605

OSPF, EIGRP 구성

R1)

router ospf 1
network 211.175.185.0 0.0.0.255 area 0
network 1.1.123.0 0.0.0.255 area 0

R2)

router ospf 1
network 1.0.0.0 0.255.255.255 area 0

R3)

router ospf 1
network 1.0.0.0 0.255.255.255 area 0

R5)

router eigrp 100
network 1.0.0.0
no auto-summary

router ospf 1
network 1.0.0.0 0.255.255.255 area 0

R7)

router eigrp 100
network 1.0.0.0
no auto-summary

R8)

router eigrp 100
network 1.0.0.0
network 192.168.10.0
no auto-summary

router ospf 1
network 1.0.0.0 0.255.255.255 area 0

router ospf 1
network 1.0.0.0 0.255.255.255 area 0

NAT 서버 구성

R8)

ip nat pool cisco 77.1.1.1 77.1.1.1 netmask 255.255.255.0
access-list 10 permit 192.168.10.0 0.0.0.255
ip nat inside source list 10 pool cisco overload

interface e0/0
ip nat inside

interface s1/0
ip nat outside

추가 구성

R1)

interface s1/0.123 point-to-point
ip ospf network point-to-multipoint

R2, R3)

interface s1/0.123 multipoint
ip ospf network point-to-multipoint

재분배

R5)

router eigrp 100
redistribute ospf 1 metric 1 1 1 1 1

router ospf 1
redistribute eigrp 100 subnets metric 20

Loopback

R8)

interface loopback 0
ip address 77.1.1.1 255.255.255.0

router eigrp 100
network 77.1.1.0
no auto-summary

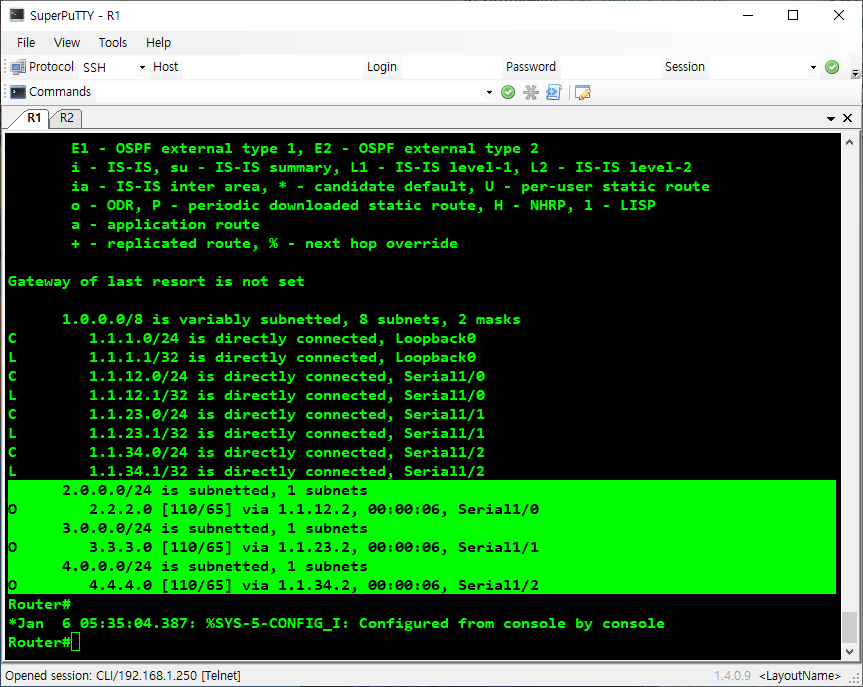

결과 - R1

Untitled (2)

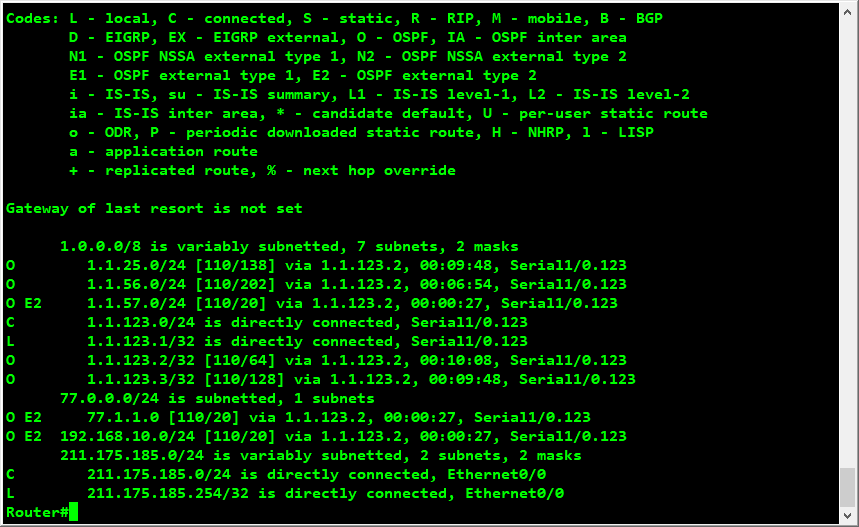

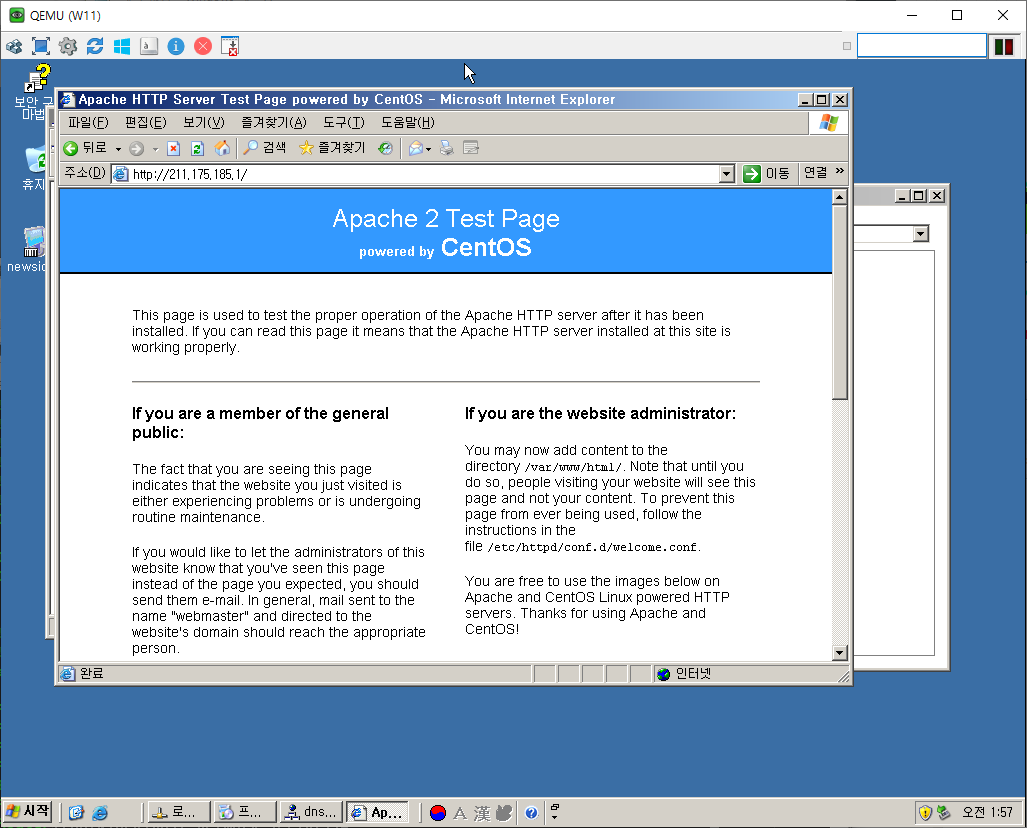

77.1.1.1 이 뜨는 것을 확인할 수 있음.

Untitled (3)

오류 해결 방법

R2)

router ospf 1
network 223.255.255.0 0.0.0.255 area 0

결과

W12)

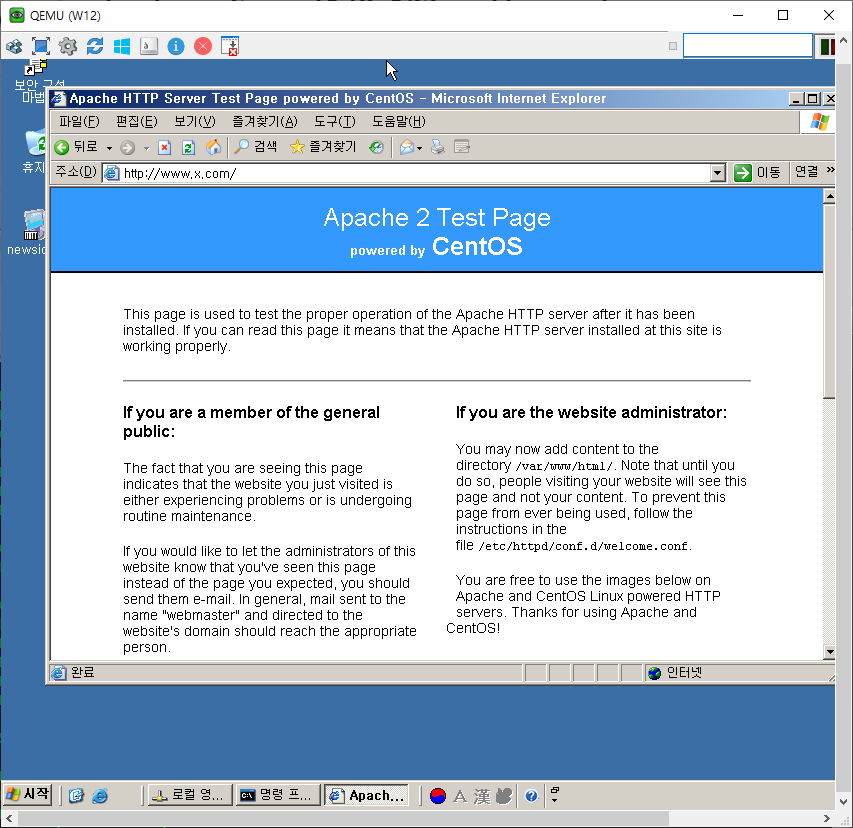

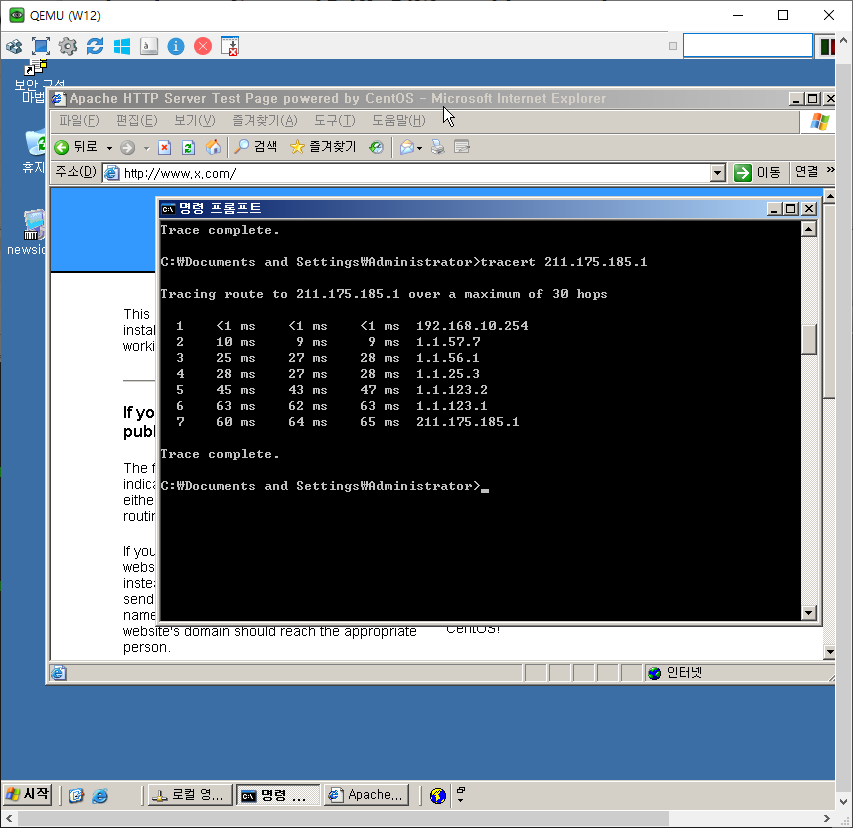

tracert 211.175.185.1 - 총 거치는 것이 7개

Untitled (4)

Untitled (5)

Routing Filtering

show ip route : 지도를 보여줌
Filtering : 원하는 것만 넘겨주려고 함.
라우팅 테이블 교환할 때 필터링을 하고 싶다는 것임.
access-list : 조건을 주고 원하는 인터페이스에 적용을 함. 그러면 방화벽이 됨. 즉, 조건 -> 인터페이스에 적용
Prefix-list 명령어는 access-list랑 비슷하다.
ge 24 <= x
Prefix-list : Only 조건
Route-map : 조건 + 수정

Ex. 조건 : /32 -> /24

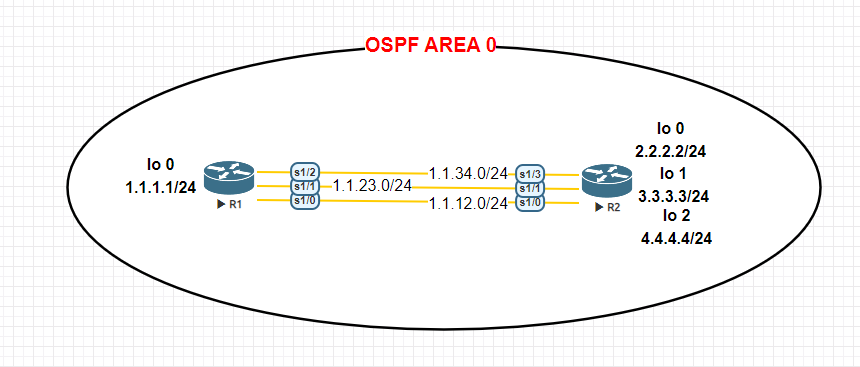

Untitled (6)

int lo 0 -> ip ospf network point-to-point
loopback 주소만 그런 것임. 주의하자.

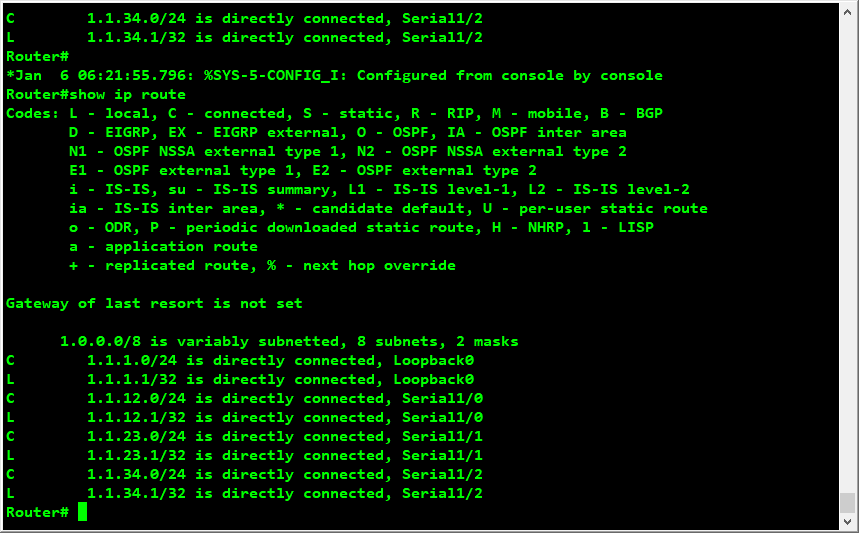

결과 (기본 구성)

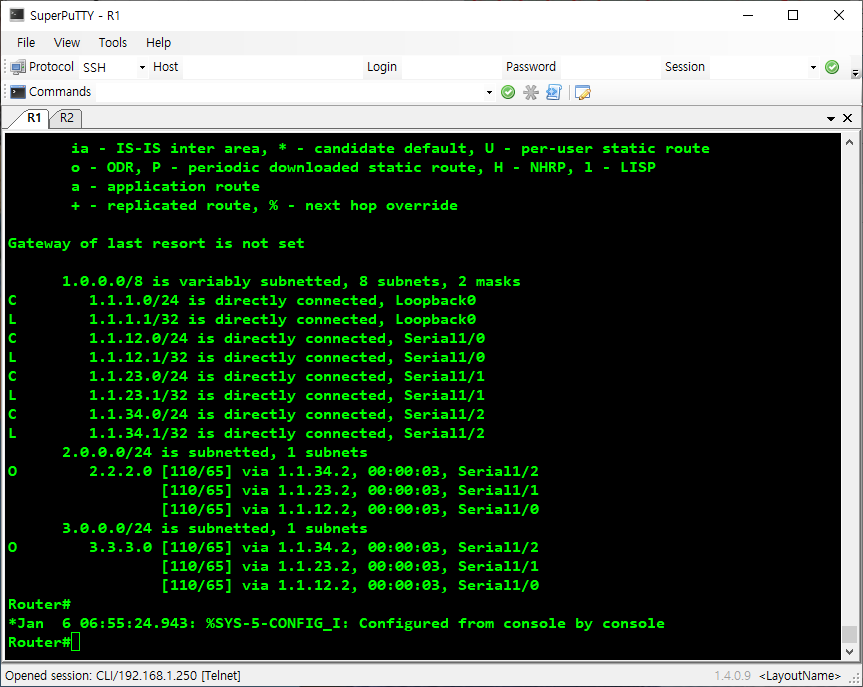

각각 via 3개가 나온 것을 확인할 수 있음.

설명

RIP, EIGRP 등과 달리 OSPF 에서는 라우팅 정보를 인터페이스에서 송신할 때에는 차단할 수 있다.

방법 Ex. 01

R1) -> 2점대만 받게 하기 위해선.

ip prefix-list D0 deny 3.3.3.0/24
ip prefix-list D0 deny 4.4.4.0/24
ip prefix-list D0 permit 0.0.0.0/0 le 32

router ospf 1
distribute-list prefix D0 in s1/0

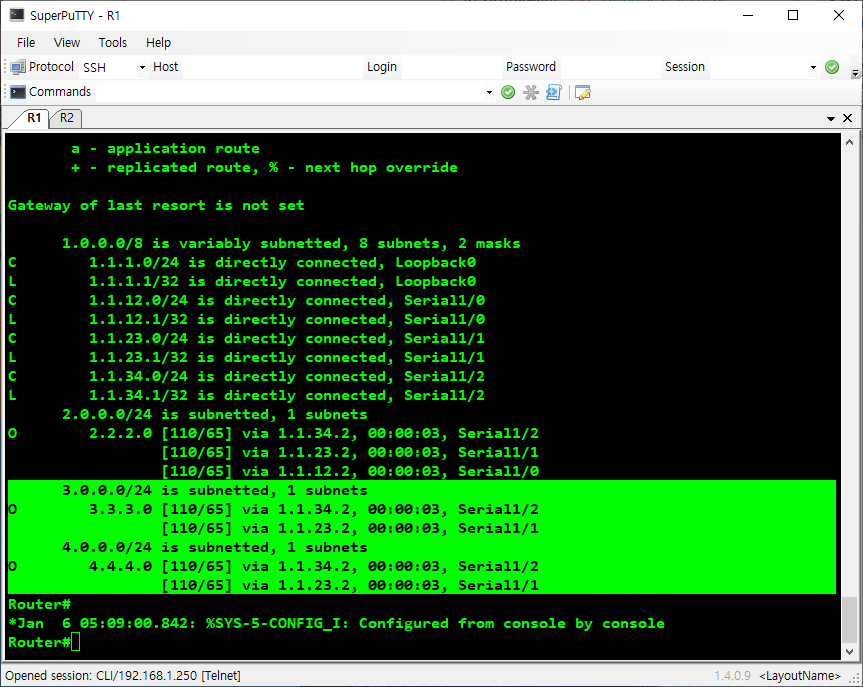

결과

3점대랑 4점대는 1.1.12.2가 막혔음을 확인할 수 있다.

추가 명령어

R1)

ip prefix-list D1 deny 2.2.2.0/24
ip prefix-list D1 deny 4.4.4.0/24
ip prefix-list D1 permit 0.0.0.0/0 le 32

router ospf 1
distribute-list prefix D1 in s1/1

ip prefix-list D2 deny 2.2.2.0/24
ip prefix-list D2 deny 3.3.3.0/24
ip prefix-list D2 permit 0.0.0.0/0 le 32

router ospf 1
distribute-list prefix D2 in s1/2

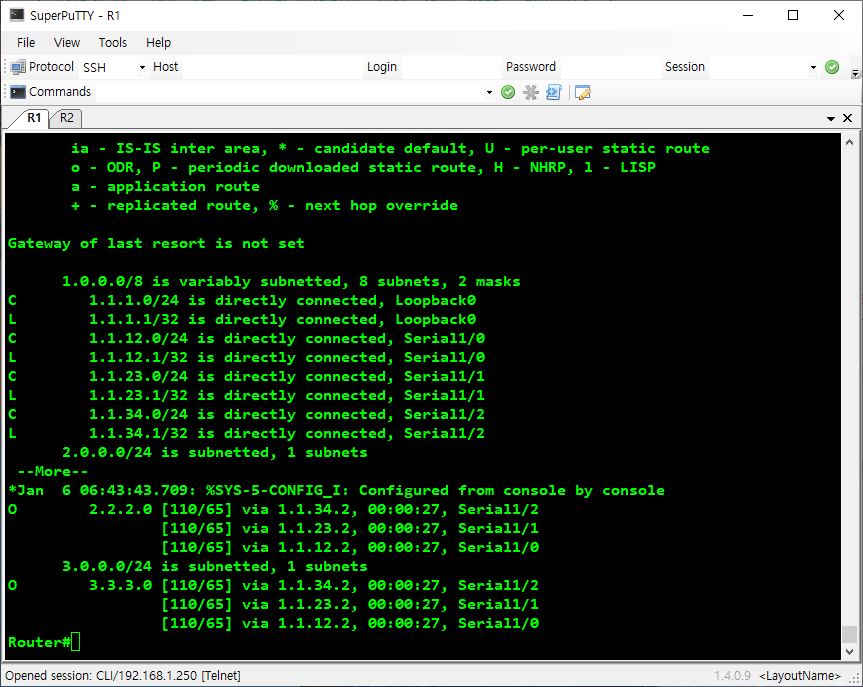

총 결과

각각 1개씩 뜬 것을 확인 할 수 있다.

Access-list

R1)

access-list 10 deny 3.3.3.0 0.0.0.255
access-list 10 deny 4.4.4.0 0.0.0.255
access-list 10 permit 0.0.0.0 255.255.255.255

access-list 20 deny 2.2.2.0 0.0.0.255
access-list 20 deny 4.4.4.0 0.0.0.255
access-list 20 permit 0.0.0.0 255.255.255.255

access-list 30 deny 2.2.2.0 0.0.0.255
access-list 30 deny 3.3.3.0 0.0.0.255
access-list 30 permit 0.0.0.0 255.255.255.255

router ospf 1
distribute-list 10 in s1/0
distribute-list 20 in s1/1
distribute-list 30 in s1/2

결과

pre랑 했을 때랑 똑같은 것을 확인할 수 있음.

필터링 명령어 : distribute ~

Named ACL

R1)

ip access-list standard cisco1
deny 3.3.3.0 0.0.0.255
deny 4.4.4.0 0.0.0.255
permit any

ip access-list standard cisco2
deny 2.2.2.0 0.0.0.255
deny 4.4.4.0 0.0.0.255
permit any

ip access-list standard cisco3
deny 2.2.2.0 0.0.0.255
deny 3.3.3.0 0.0.0.255
permit any

router ospf 1
distribute-list cisco1 in s1/0
distribute-list cisco2 in s1/1
distribute-list cisco3 in s1/2

결과

route-map

R1)

ip prefix-list D0 deny 3.3.3.0/24
ip prefix-list D0 deny 4.4.4.0/24
ip prefix-list D0 permit 0.0.0.0/0 le 32

ip prefix-list D1 deny 2.2.2.0/24
ip prefix-list D1 deny 4.4.4.0/24
ip prefix-list D1 permit 0.0.0.0/0 le 32

ip prefix-list D2 deny 2.2.2.0/24
ip prefix-list D2 deny 3.3.3.0/24
ip prefix-list D2 permit 0.0.0.0/0 le 32

router ospf 1
distribute-list route-map D0 in
distribute-list route-map D1 in
distribute-list route-map D2 in → 이것만 남음. 아마 덮어씌어진 것을 추정.

결과 - R1

route-map

요구 조건 : 2.2.2.2 3.3.3.3만 허용
1) Prefix-list
R1)

ip prefix-list D3 permit 2.2.2.0/24
ip prefix-list D3 perimt 3.3.3.0/24

route-map cisco1
match ip address prefix-list D3

router ospf 1
distribute-list route-map cisco1 in

결과)

2) Numbered ACL

R1)

access-list 10 permit 2.2.2.0 0.0.0.255
access-list 10 permit 3.3.3.0 0.0.0.255

route-map cisco2 permit
match ip address 10

router ospf 1
distribute-list route-map cisco2 in

3) Named ACL

R1)

ip access-list standard acl1
permit 2.2.2.0 0.0.0.255
permit 3.3.3.0 0.0.0.255

route-map cisco3
match ip address acl1

router ospf 1
distribute-list route-map cisco3 in

결과)
